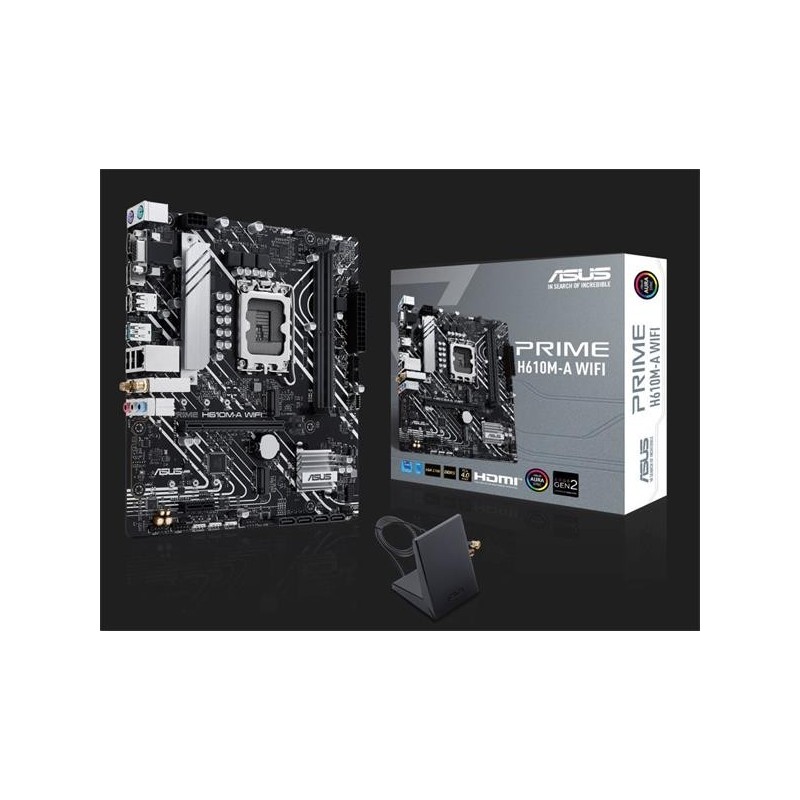

ASUS PRIME H610M-A WIFI soc 1700 H610 DDR5 mATX M.2 HDMI D-Sub DP 90MB1G00-M0EAY0
Na predajni: Do 24 hod. po objednaní tovaru
Popis
ASUS PRIME H610M-A WIFI
Chipset: Intel® H610
Rozmerový formát: mATX (244x216mm)
Podpora pre procesory: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold a Celeron®
Pätica procesora: LGA1700
Pamäť:
- 2x DIMM, max. 96GB, DDR5 5600/5400/5200/5000/4800 bez ECC, bez vyrovnávacej pamäte
- dvojkanálová architektúra pamäte
- podporuje Intel® Extreme Memory Profile (XMP)
- OptiMom II
Grafické výstupy:
- 1x DisplayPort 1.4
- 1x VGA
- 1x HDMI 2.1
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC - podporuje prehrávanie až 24-bit/192kHz
Ethernet: 1x Intel® 1Gb
WLAN + Bluetooth: Wi-Fi 5 (802.11 a/b/g/n/ac) + Bluetooth® v5.0
Rozširujúce sloty:
- 1x PCIe 4.0 x16
- 1x PCIe 3.0 x1
Úložný priestor:
celkom podporuje 2 sloty M.2 a 4 porty SATA 6Gb/s
- 1x M.2_1 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x4)
- 1x M.2_2 (Key M), typ 2242/2260/2280 (podporuje režim PCIe 3.0 x2)
- 4x port SATA 6Gb/s
USB:
Zadné USB (celkom 5 portov)
- 1x USB 3.2 Gen 2 (1x typ-A)
- 4x USB 2.0 (4x typ-A)
Predné USB (celkom 6 portov)
- 1x USB 3.2 Gen 1 konektor - podpora USB-C®
- 1x USB 3.2 Gen 1 header - podpora ďalších 2 portov USB 3.2 Gen 1
- 1x USB 2.0 header - podpora ďalších 2 portov USB 2.0
- 1x USB 2.0 header - podpora ďalšieho 1 portu USB 2.0
Porty na zadnom paneli:
- 1x USB 3.2 Gen 2 (1x typ-A)
- 4x USB 2.0 (4x typ-A)
- 1x DisplayPort
- 1x HDMI®
- 1x VGA
- 1x modul Wi-Fi
- 1x RJ-45 Intel® 1Gb
- 3x audio jack
- 1x PS/2 klávesnica (fialový)
- 1x PS/2 myši (zelený)
Interné porty:
Súvisiaci s ventilátorom a chladením
- 1x 4-pin CPU Fan header
- 2x 4-pin Chassis Fan headers
Napájanie
- 1x 24-pin hlavný napájací konektor
- 1x 8-pin +12V napájací konektor
Súvisiace s úložiskom
- 2x M.2 slot (Key M)
- 4x SATA 6Gb/s port
USB
- 1x USB 3.2 Gen 1 konektor - podpora USB-C®
- 1x USB 3.2 Gen 1 header - podpora ďalších 2 portov USB 3.2 Gen 1
- 1x USB 2.0 header - podpora ďalších 2 portov USB 2.0
- 1x USB 2.0 header - podpora ďalšieho 1 portu USB 2.0
Ostatné
- 3x adresovateľný Gen 2 header
- 2x Aura RGB header
- 1x Clear CMOS header
- 1x COM Port header
- 1x Front Panel Audio header (AAFP)
- 1x S/PDIF Out header
- 1x Speaker header
- 1x SPI TPM header (14-1pin)
- 1x 10-1 pin System Panel header
BIOS: 128Mb Flash ROM, UEFI AMI BIOS
Príslušenstvo:
- 2x SATA 6Gb/s kábel
- 1x I/O záslepka
- 1x balenie skrutiek pre M.2 SSD
- 1x Wi-Fi anténa
- 1x užívateľská príručka
Odkaz na stránku výrobcu: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/
====================================================================================================
Špecifikácia:
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H610 Chipset
Memory 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors*
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet 1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth "Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth® v5.1*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x VGA port
1 x Wi-Fi Module
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
MyASUS
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
Documentation
1 x User guide
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
