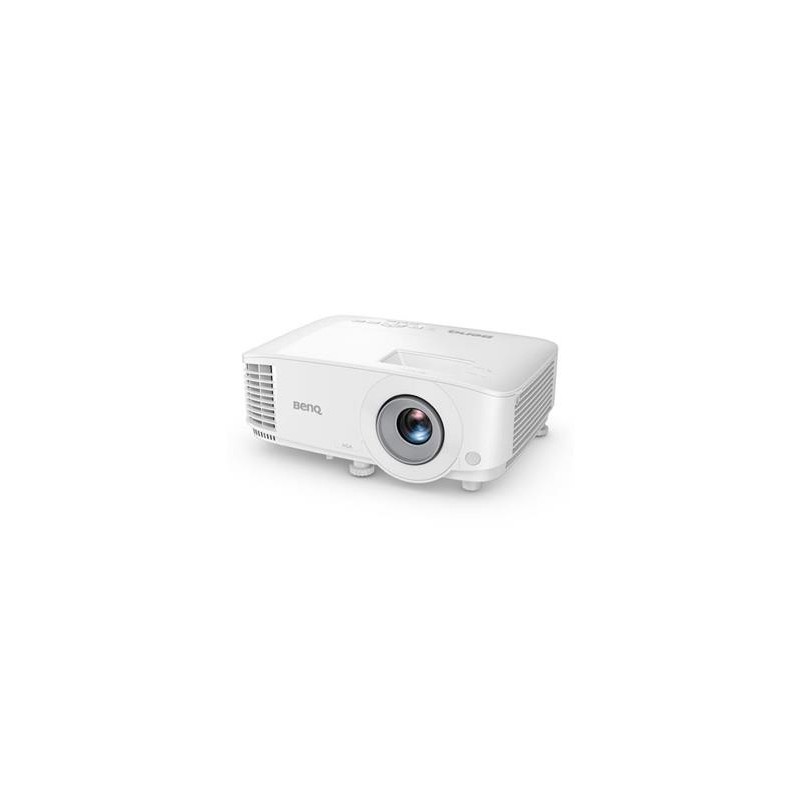

BenQ DLP Projektor MX560 /1024x768 XGA 9H.JNE77.13E

Popis produktu

Základné parametre

Typ projektoru: Kancelársky

Širokouhlý: Áno

Economic mode: Áno

Reproduktory: Áno

Diaľkové ovládanie: Áno

Zobrazenie

Zobrazovač: DLP

Zdroj svetla: Lampa

Rozlíšenie: 1280 x 800 (WXGA)

Kontrast [: 1]: 20 000

Pomer obrazu: 4:3

Farby: 1,07 mld

Lampa [W]: -

Svietivosť [ANSI lumens]: 4 000

Uhlopriečka zobrazovacie časti [palce]: 60 - 150

Pripojiteľnosť

HDMI: 2x

VGA (D-SUB): 2x

S-Video: 1x

RCA (kompozit): 1x

3.5 mm Jack: 2x

USB Type A: 1x

Mini USB Type B: 1x

Rozmer a hmotnosť

Rozmery [š x v x h mm]: 296 x 120 x 221

Hmotnosť [kg]: 1,9

====================================================================================================

All Specifications
Display
Projection System DLP Single 0.55" XGA
Resolution 1024 x 768 pixels
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Brightness (ANSI lumens) 4000 ANSI Lumens
Contrast Ratio (FOFO) 20000:1
Display Color 30 Bits (1,07 billion colors)
Native Aspect Ratio Native 4:3 (5 aspect ratio selectable)
Light Source Lamp
Light Source life*
Normal 6000 hr
Economic 10000 hr
SmartEco 10000 hr
LampSave 15000hr

Optical
Throw Ratio 1.96~2.15
Zoom Ratio 1.1X
Lens shift NA
Projection Offset** 110%
Projection Size 60"~150"
Keystone Correction Auto ID, Vertical +/- 40 degrees
Horizontal Frequency 15k ~ 102 kHz

Audio
Speaker 10W x 1

Special Feature
Security Security Bar, Kensington lock
Feature 1D Auto Keystone, High Brightness, Spreadsheet mode, Bright Mode, Presentation Mode, Infographic Mode, Video Mode, Srgb Mode

Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p), HDTV (720p, 1080i/p 60Hz)

Connectivity
HDMI
HDMI-1
HDMI-2
PC (D-sub 15pin) x1
Monitor out (D-sub 15pin,Female) x1
Audio in (mini jack) x1
Audio out (mini jack) x1
RS232 In (D-sub 9pin, male) 1
USB TypeA-1 x1 (1.5A power)
USB Type mini B x1
IR Receiver (Front+Top) x2
S-Video x1
Composite Video (RCA) x1

Dimension and Weight
Dimensions (W x H x D)(mm) 296 x 120 x 221 mm
Net Weight (Kg/ lbs ) 2.3kg +/- 200g

Power
Power Consumption(Max/Normal/Eco) Max 280W, Normal 260W, Eco 215W
Standby Power Consumption Normal < 0.5Watts.
Power Supply 100 ~ 240V AC

Operation Condition
Noise Level(Normal/Eco) 34 /29 dBA
Operating Temperature 0~40 °C

Accessories (Standard)
Remote Control w/ Battery x 1 (5J.JND06.001)
Power Cord (by region) x 1 (1.8m)
Quick Start Guide x 1 (4J.JND01.001)
Warranty Card (by region) x 1
VGA(D-sub 15pin) Cable x 1 (1.5m)
AAA Battery x 2

Accessories (Optional)
Spare Lamp Kit x 1 (5J.JND05.001)
Universal Ceiling Mount x 1
3D Glasses x 1 (5J.J9H25.002)
QCast Mirror dongle x 1 (5A.JH328.10X)

OSD
OSD Language Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages)
