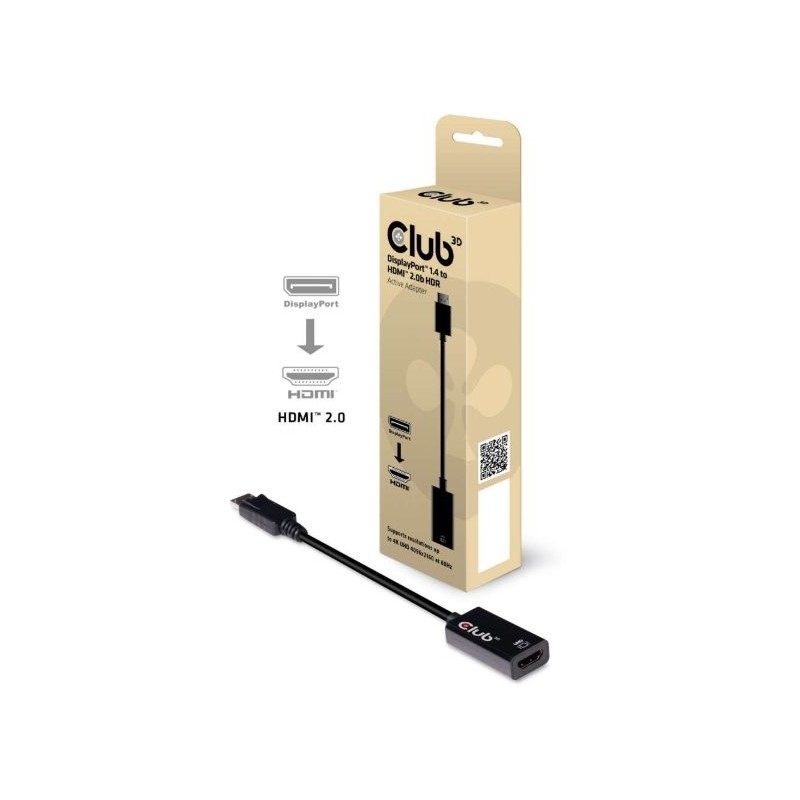

Club 3D DisplayPort 1.4 to HDMI 2.0b HDR active adapter CAC-1080

Club 3D DisplayPort 1.4 to HDMI 2.0b HDR active adapter

SPECIFICATIONS
Model:
Product Name: DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter
Product Series: Adapters
Itemcode: CAC-1080
EAN code: 8719214470852
UPC code: 841615101047

Features:
• DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
• Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec)
• DisplayPort™ to HDMI™ Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of ther 3D Formats
• Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
• HDCP Support
- HDCP 1.3 to HDCP 1.4 repeater function
- HDCP 2.2 to HDCP 1.4 and 2.2 repeater function
• HDMI™ transmitter
- Compliant to HDMI™ specifications version 2.0 b
- 600MHz max TMDS character clock
- High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- CEC Support - snooping, tunneling
• Max Video resolution and color depth on HDMI™ output
- 4K 60Hz RGB/YCbCr 4:4:4, 8bpc
- 4K 60Hz YCbCr 4:2:2, up to 12bpc
- 4K 60Hz YCbCr 4:2:0, up to 16bpc
- 4K 30Hz RGB/YCbCr 4:4:4, up to 16bpc
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b.

Input:
DisplayPort™ 1.4 male
Output:
HDMI™ 2.0 b female
OS Support:
Windows 10, Apple OS X

Other info:
• Boxsize: 182 x 60 x 35mm.
• Cable: 184 x 20 x 11 mm.
• Product Weight: 32 gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China
