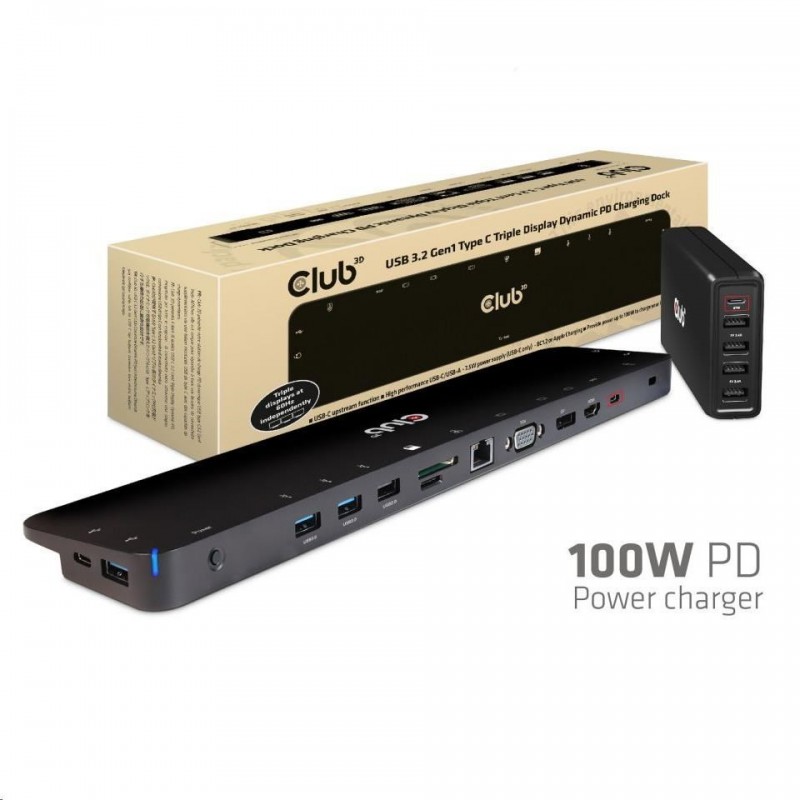

Club3D dokovací stanice USB-C 3.2 s napájecím adaptérem Triple Dynamic PD, 100 W CSV-1564W100

Dostupnosť: Skladom v eshope

Na predajni: Do 24 hod. po objednaní tovaru

Cena s DPH: 163,80 €

CSV-1564W100
Club 3D

Popis

USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger

CSV-1564W100 - The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.

So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.

  • Supports DP Alt Mode and PD 3.0
  • Supports max. 5Gbps data transmission on the USB 3.2 Gen1 Type C ports
  • One USB 3.2 Gen1 Type C Data port
  • One USB 3.2 Gen1 Type C port supports PD charging with max 100W(20V/5A) Bundled with 100W Power Supply (for Notebooks with current consumption up to 100W)
  • HDMI™ 4K 30 Hz
  • DP™ 4K 30 Hz
  • VGA 1920x1200 60Hz
  • Triple Display support
  • one port IEEE 802.3 Ethernet support for up to 1000BASE-TX
  • SD- and Micro SD Slots work simultaneously
  • Audio port(Stereo), supports both micro- and head-phone
  • Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD PowerSupply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.



TECHNICAL SPECIFICATIONS

Product Name USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger
Product Series Docking Station
Itemcode CSV-1564W100
EAN code 8719214471866
UPC code 841615101849
OS Support - Microsoft Windows 10
- Mac OSX Supports SST mode Only
In the box - CSV-1564 Docking Station
- PowerSupply (CAC-1903) Input:100-110/240VAC, Output: up to 100W,Various Powerplugs depending on Country (Specify on order)
- 2x USB TypeC cable, 1x connection to Host(27cm / 0.886ft, 1x RED cable USB type C for charging to PowerSupply 1 m / 3.28 ft
- Quick Install Guide
Available Interfaces 3x USB 3.2 Gen1 Type C Female (1-for Data, 1 for PD charging, 1 for connecting to Host)
3x USB 3.0 Type A female
2x USB 2.0 Type A female
1x HDMI™ female
1x DisplayPort™ female
1x VGA female
1x RJ45 jack
1x SD slot
1x Micro SD slot
1x 3.5mm Stereo jack(Headphone/Mic)
Box size 36.7 x 7.9 x 10.9 cm / 14.45 x 3.1 x 4.29 inch
Device size 35 x 7.5 x 2 cm / 13.78 x 2.95 x 0.79 inch
Device Weight depending on power plug ? 250 gr. / 8.82oz
USB-C cable Weight 35 gr. / 1.2 oz
Box Weight 239gr. / 8.43 oz
Power supply (CAC-1903) weight depending on power plug ? 666 gr. / 23.5 oz
Total Weight depending on power plug ? 949 gr./ 33.425 oz
