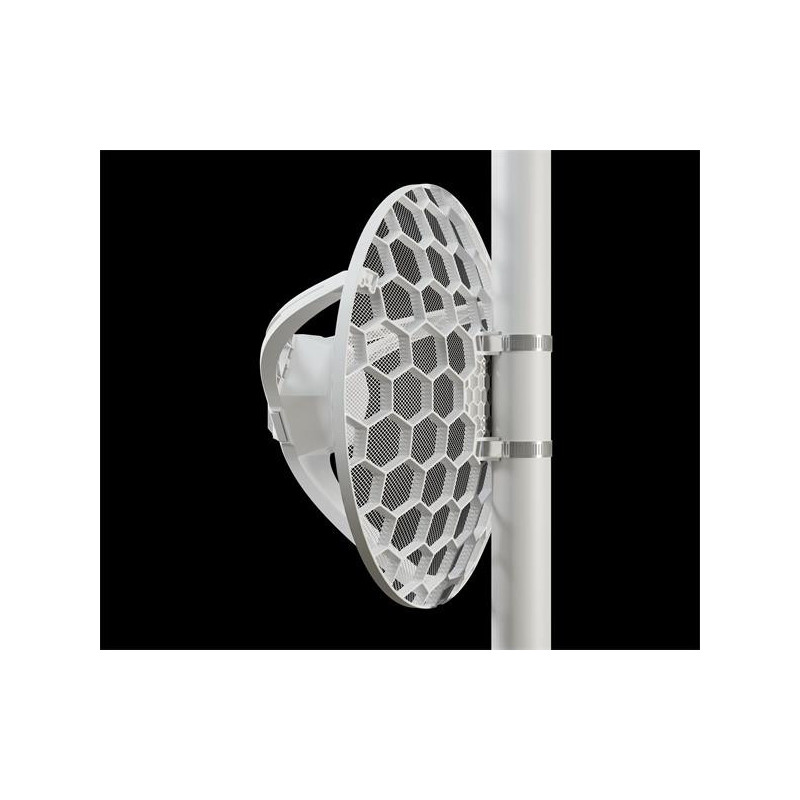

MIKROTIK LHG LTE18 kit with Gigabit port and RouterOS L3 license, International version LHGGM&EG18-EA

Specifications

Details

Product code LHGGM&EG18-EA

Architecture ARM 64bit

CPU 88F3720

CPU core count 2

CPU nominal frequency 800 MHz

RouterOS license 3

Operating System RouterOS v7

Size of RAM 256 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 200'000 hours at 25C

Tested ambient temperature -40°C to 70°C



Powering

Details

Number of DC inputs 1 (PoE-IN)

Max power consumption 8 W

Max power consumption without attachments 8 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 12-57 V



Mobile

Details

3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)

3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)

LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)

MIMO DL 2x2

LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)

LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)

TAC 86981604



Ethernet

Details

10/100/1000 Ethernet ports 1

Peripherals

Details

Number of SIM slots 1 Modem (Micro SIM)

Number of M.2 slots 1



Other

Details

Mode button Yes

Certification & Approvals

Details

Certification CE, EAC, ROHS

IP 54
