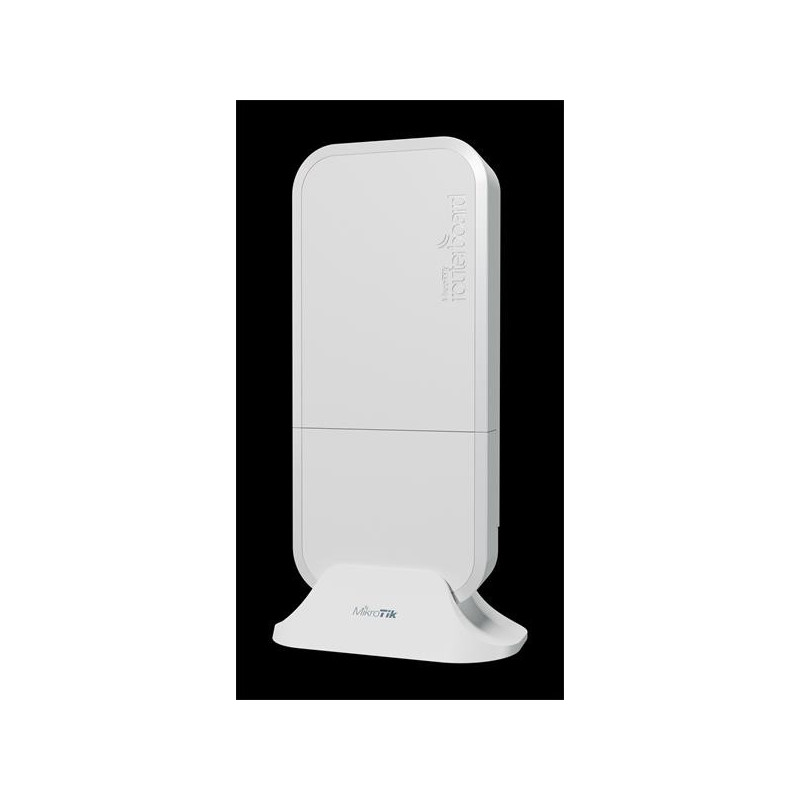

MIKROTIK wAP ax with RouterOS L4 license, International version wAPG-5HaxD2HaxD

wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments – like a rural gas station or a bus stop.



Specifications

Details

Product code wAPG-5HaxD2HaxD

Architecture ARM

CPU IPQ-5010

CPU core count 2

CPU nominal frequency 800 MHz

RouterOS license 4

Operating System RouterOS v7

Size of RAM 256 MB

Storage size 128 MB

Storage type NAND

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 70°C



Wireless capabilities

Details

Wireless 2.4 GHz Max data rate 574 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n/ax

Antenna gain dBi for 2.4 GHz 2.5

Wireless 2.4 GHz chip model IPQ-5010

Wireless 2.4 GHz generation Wi-Fi 6

Wireless 5 GHz Max data rate 2400 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac/ax

Antenna gain dBi for 5 GHz 7

Wireless 5 GHz chip model QCN-6102

Wireless 5 GHz generation Wi-Fi 6

WiFi speed AX3000



Ethernet

Details

10/100/1000 Ethernet ports 2



Powering

Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-57 V

Max power consumption 9 W

Max power consumption without attachments 9 W

Cooling type Passive

PoE in 802.3af/at

PoE in input Voltage 18-57 V



Certification & Approvals

Details

Certification CE, FCC, IC, EAC, ROHS

IP 54



Other

Details

CPU temperature monitor Yes

PCB temperature monitor Yes

Voltage Monitor Yes
