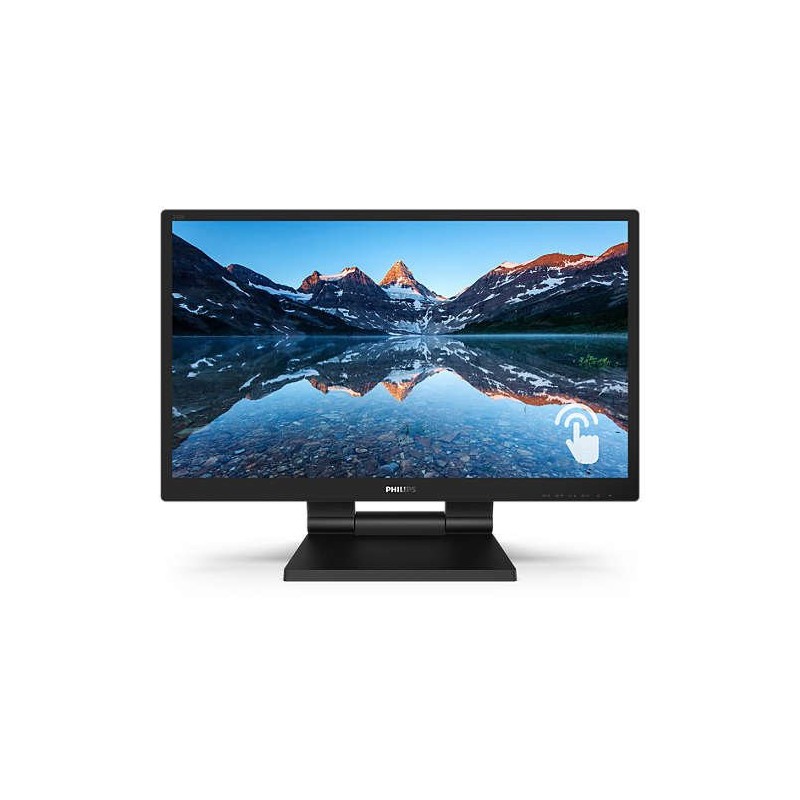

Philips 242B9T/00 23.8" touch IPS LED 1920x1080 20 000 000:1 5ms 250cd DP HDMI DVI

Brilantný interaktívny displej s technológiou SmoothTouch

• Displej s funkciou SmoothTouch pre prirodzenú, plynulú odozvu na dotyk
• Predný povrch monitoru spĺňa normu IP54 pre odolnosť proti vode a prachu.
• SmartContrast pre bohaté detaily čiernej
• Režim LowBlue na podporu produktivity pri ochrane očí
• Menšie únava očí vďaka technológii Flicker-free

Typ obrazovky: IPS
Podsvietenie: W-LED
Uhlopriečka [palce]: 23.8 /60.5 cm
Rozlíšenie: 1920 × 1080 pri 60 Hz
Rozstup bodu [mm]: 0.275 x 0.275 mm
Pomer strán: 16: 9
Povrch displeja: Antireflexná, 3H, Zmatnenie 25%
Jas [cd / m2]: 250 cd / m2
Kontrast: 1000: 1
Odozva [ms]: 5 ms
Pozorovacie uhly (horizontal / Vertikál): 178o (H) / 178o (V)
Počet farieb: 16,7 milióna

Dotykový panel

Dotyková technológia: Kapacitný technológia Projected
Dotykové body: 10 bodov
Metóda dotyku: Pero, prst
Dotykové rozhranie: USB
Tvrdosť dotykového skla: 7 H
Aktívne oblasť dotyku: 528 mm (H) x 297,5 mm (V)
Operačný systém: Windows 10 / 8.1 / 8/7, Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4

Reproduktory: 2 W x 2

Konektory:

• Vstup signálu

VGA (analógový)
DVI-D (digitálny, HDCP)
DisplayPort 1.2
HDMI 1.4

• USB

USB 3.1 x 2 (1 w / rýchle nabíjanie)

• Vstup synchronizácia

samostatná synchronizácia
Synchronizácia na zelenej

• Vstup / výstup audia

Vstup pre audio z PC
Výstup pre slúchadlá

Napájanie: Externý, 100-240 VAC, 50-60 Hz
Spotreba [W]: 16 W (typ.)
Režim vypnutia [W]: <0,3 W (typ.)
TCO: TCO edge

Montáž na stenu: VESA (100 x 100 mm)
Farba: Čierna
Rozmery (so stojanom, ŠxVxH mm): 554 x 413 x 227 mm
Rozmery (bez stojanu, ŠxVxH mm): 554 x 338 x 50 mm
Hmotnosť [kg]:

Výrobok so stojanom (kg) 8,15 kg
Výrobok bez stojanu (kg) 4,86 kg

Obsah balenia:

Monitor so stojanom
Kábel D-Sub, kábel HDMI, kábel DP, kábel USB-A na B, audio kábel, napájací kábel
Užívateľská dokumentácia
Dotykové pero 1x (čierne)

=====================================================================================================

Picture/Display
• LCD panel type: IPS technology
• Backlight type: W-LED system
• Panel Size: 23.8 inch/60.5 cm
• Display Screen Coating: Anti-Glare, 3H, Haze 25%
• Effective viewing area: 527 (H) x 296.5 (V)
• Aspect ratio: 16:9
• Optimum resolution: 1920 x 1080 @ 60 Hz
• Pixel Density: 93 PPI
• Response time (typical): 5 ms (Grey to Grey)*
• Brightness: 250 cd/m˛
• Contrast ratio (typical): 1000:1
• SmartContrast: 50,000,000:1
• Pixel pitch: 0.275 x 0.275 mm
• Viewing angle: 178ş (H)/178ş (V), @ C/R > 10
• Flicker-free
• Picture enhancement: SmartImage
• Colour gamut (typical): NTSC 72% (CIE 1931)
• Display colours: 16.7 M
• Scanning Frequency: 30–85 kHz (H) / 48–75 Hz (V)
• sRGB
• EasyRead
• LowBlue Mode
Touch
• Touch technology: Projected capacitive
• Touch points: 10 points
• Touch method: Stylus, finger
• Touch interface: USB
• Touch glass hardness: 7 H
• Touch active area: 528 mm (H) x 297.5 mm (V)
• Operating system: Windows 10/8.1/8/7; Android
7.1/7.0/6.0/5.0/4.4*
• Ingress protection: IP54 - front only
• Sealability: Touchscreen sealed to bezel;
Touchscreen sealed to LCD
Connectivity
• Signal Input: VGA (Analogue), DVI-D (digital,
HDCP), DisplayPort 1.2, HDMI 1.4
• USB: USB 3.1 x 2 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 2 W x 2
• User convenience: SmartImage, Input, Brightness,
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
English, Finnish, French, German, Greek,
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukrainian
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, sRGB,
Windows 10 / 8.1 / 8 / 7
Stand
• Tilt: -5–90 degree
• Folding angle: 0–70 degrees
Power
• ECO mode: 11.5 W (typ.)
• On mode: 16 W (typ.) (EnergyStar 7.0 test
method)
• Standby mode: < 0.5 W (typ.)
• Off mode: < 0.3 W (typ.)
• Energy Label Class: A
• Power LED indicator: Operation - White, Standby
mode - White (flashing)
• Power supply: External, 100-240 VAC, 50-60 Hz
Dimensions
• Product with stand (max height): 554 x 413 x
227 mm
• Product without stand (mm): 554 x 338 x 50 mm
• Packaging in mm (W x H x D): 620 x 433 x 168 mm
Weight
• Product with stand (kg): 8.15 kg
• Product without stand (kg): 4.86 kg
• Product with packaging (kg): 11.06 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%–80% %
• Altitude: Operation: +12,000 ft (3658 m), Nonoperation: +40,000 ft (12,192 m)
• MTBF (demonstrated): 70,000 hrs (excluded
backlight)
Sustainability
• Environmental and energy: EnergyStar 7.0,
EPEAT*, TCO edge, RoHS, WEEE
• Recyclable packaging material: 100 %
• Specific Substances: PVC/BFR free housing,
Mercury free, Lead free
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, EPA, UKRAINIAN, ICES-003, TUV/GS,
TUV Ergo, CU-EAC
Cabinet
• Front bezel: Black
• Rear cover: Black
• Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
• Cables: D-Sub cable, HDMI cable, DP cable, USB-A
to B cable, Audio cable, Power cable
• User Documentation
• Accessory: Stylus touch pen x 1 (black)
