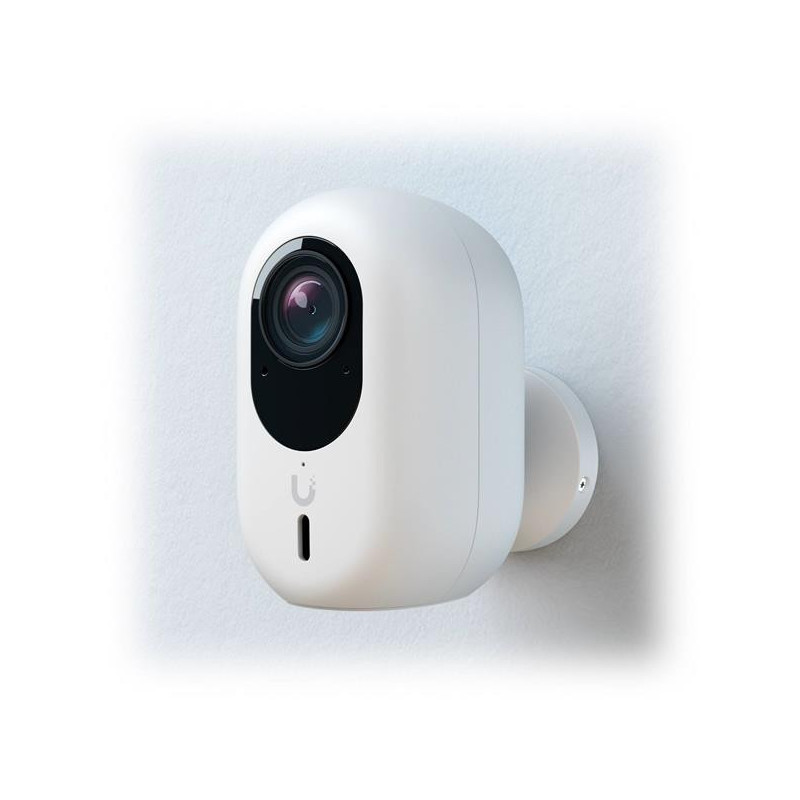

Ubiquiti Plug-and-play, 4K WiFi-connected camera with a 1/1.8" 8MP image sensor UVC-G6-INS-W

Plug-and-play, 4K WiFi-connected camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and two-way audio.



Technical Specifications

Overview

Dimensions

81.7 x 50.1 x 57.2 mm

(3.2 x 2 x 2.3")

IR Night Vision

6 m (20 ft)

Face Recognition

Yes

License Plate Recognition

Yes

Smart Detections (People, Vehicles, Animals)

Yes

Resolution

4K

Field of View

H: 109.9°, V: 56.7°, D: 134.1°

Audio

Two-way audio

Weatherproofing

IPX5

Tamper Resistance

IK04

Mounting

Wall mount accessory (Included)

UniFi Application Suite

Protect

Yes

Performance

Networking Interface

802.11 a/b/g/n/ac WiFi

Bluetooth

Video

Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Max. Frame Rate

30 FPS

Resolution

8MP 3840 x 2160 (16:9)

Optics

Sensor

1/1.8” 8MP

Lens

Fixed focal length

Night Mode

Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption

7W

Supported Voltage Range

5V DC, 2A

Power Method

5V, 2A USB power adapter (Included)

PoE to USB-C adapter (Not included)

Processor

Quad-core Arm® Cortex®-A53 based chip

Weight

180 g (6.3 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Button

(1) Factory-reset

Ambient Operating Temperature

-20 to 40° C (-4 to 104° F)

Ambient Operating Humidity

0 to 90% noncondensing

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Cable

Cable Connector Type

USB Type-C to USB Type-C

Cable Diameter

3 mm (0.1")

Cable Length

2 m (6.6 ft)

Jacket Material

Thermoplastic elastomer

Expansion Slot

MicroSD card
